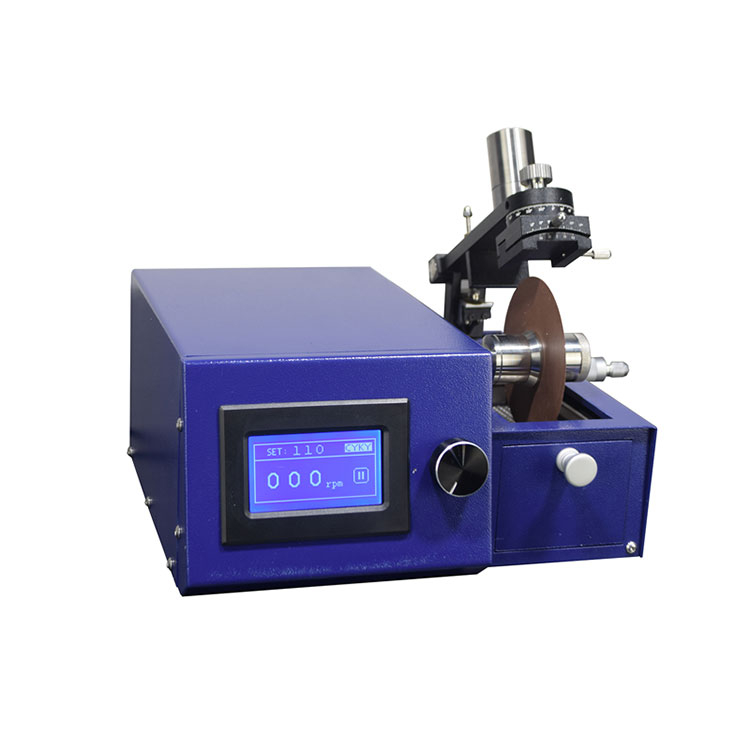

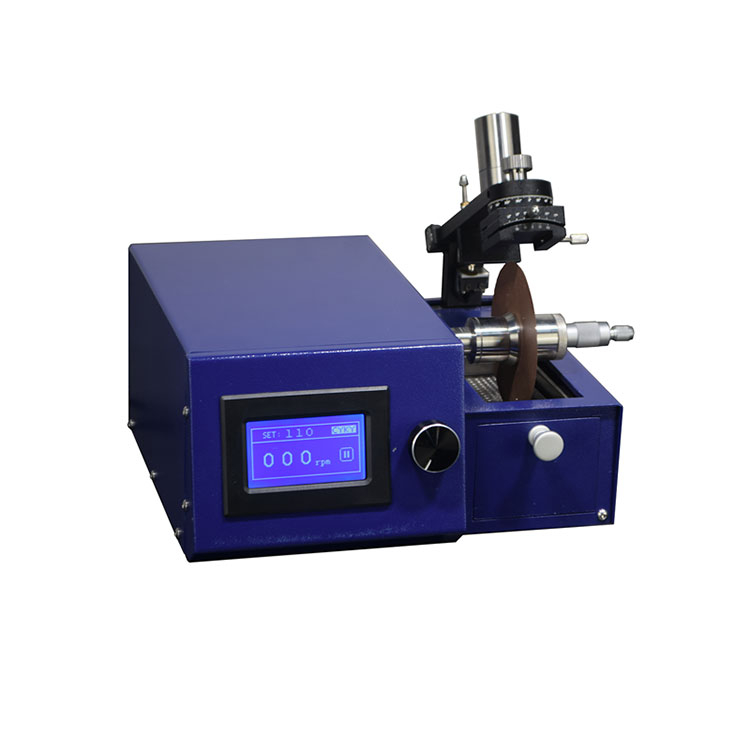

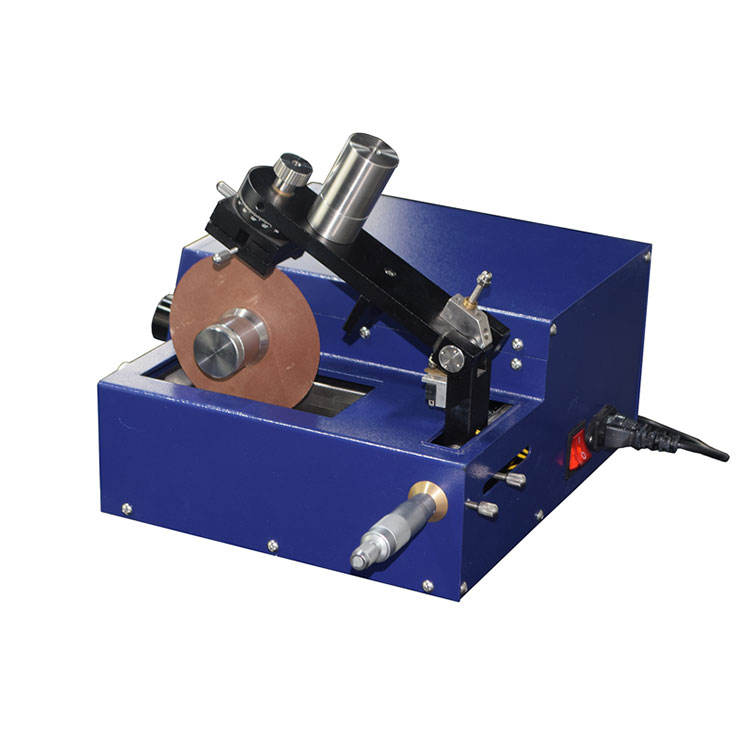

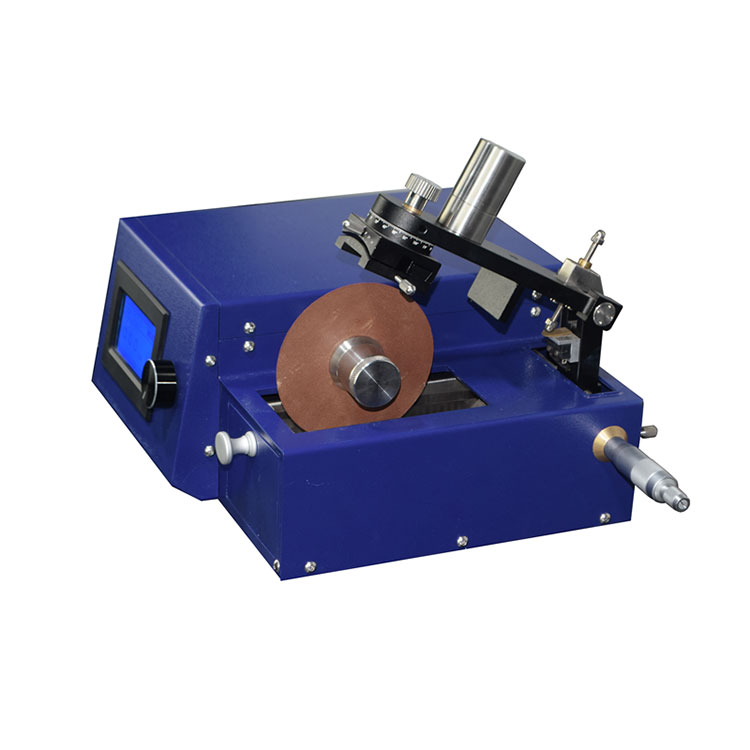

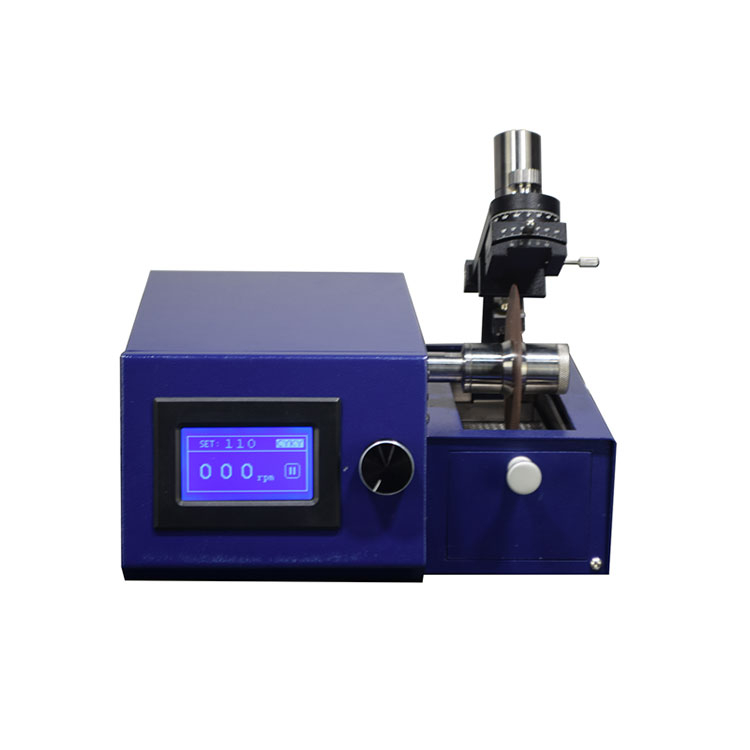

Digital Low Speed Diamond Saw with Three 4" Precision Blades & Complete Accessories

Model No.

CY-DS-100

Working oltage

 AC 110V/220V switchable for worldwide usage
 110VDC Motor
 8Amp fuse installed

Speed range

0~600rpm with LED Digital display

Cutting width & Depth

The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer. The LCD micrometer is waterproof with a resolution of 0.001 mm and accuracy of +/-0.003 mm.
 32.5mm max. cutting depth (when using 35mm Dia. blade flange)

Diamond blades

  Three blades are included for cutting various materials
  SiC blade: 4" x 0.35 mm   x 0.5" Arbor for cutting nonferrous metal materials, such as superalloys.
  Al2O3 blade: 4" x 0.35   mm x 0.5" Arbor for cutting ferrous metal materials, such as iron and steel.
  Full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystal, ceramic, and plastic materials

Sample Holder & Mini-vise

 Two angles adjustable sample holder is included, please click picture below for the details (max. opening 26mm)
  One Mini-vise is included, which can be easily adapted onto the sample holder to clamp rod shape specimens with a diameter up to 1'' max.

Package Dimensions

19"(L) x 15"(W) x 15"(H)

Shipping Weight & Dimension

32 lbs, 18" x 14" x 14"
